JL Audio Ships Entry Level Components This Month

share on:

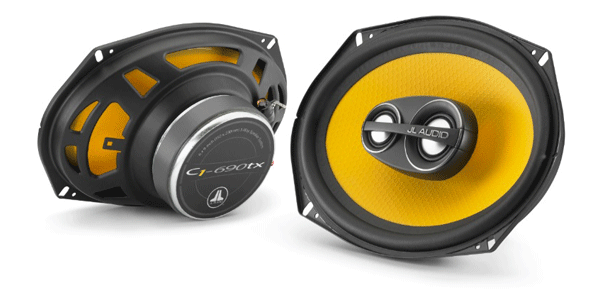

JL-Audio-C1

 JL Audio is shipping next week a new line of C1 entry level component and coaxial speakers. They are designed as OEM replacement speakers with mounting rings for easy integration into vehicles.

The line covers all the key sizes with fewer models and offers features typically found at much higher price points, claims JL Audio. Suggested retail prices range from $49.99 – $159.99. This is lower than  JL’s current C2 line with prices from $89 to $250.

The C1 adapter rings are model specific and included for bottom-mount applications and for compatibility with unique speaker frame designs from car makers such as GM and Honda. They also work in oversized 6.75-inch openings.

Features on the C1 include aluminum dome tweeters, oversized voice coils, and integrated lead wires.

“This year we set out to solidify JL Audio as a full-range speaker company. The introduction of C1 anchors our offering in the category and provides the first time buyer a taste of amazing sound from the factory speaker location,” said Manville Smith, JL Audio VP of Marketing.

Here is a listing of C1 models:

Coaxial Models

C1-400x:

Continuous Power Handling: 35 Watts

Recommended Amp Power: 10-50 Watts per channel (RMS)

Efficiency: 84.5 dB @ 1W/1m | 90.5 dB @ 1W/0.5m

Sensitivity: 87.5 dB @ 2.83V/1m

Nominal Impedance: 4 ohm

Frequency Response: 64 Hz – 24 kHz ± 3 dB



C1-525x:

Continuous Power Handling: 50 Watts

Recommended Amp Power: 10-75 Watts per channel (RMS)

Efficiency: 89.0 dB @ 1W/1m | 95.0 dB @ 1W/0.5m

Sensitivity: 92.0 dB @ 2.83V/1m

Nominal Impedance: 4 ohm

Frequency Response: 54 Hz – 24 kHz ± 3 dB



C1-570x:

Continuous Power Handling: 50 Watts

Recommended Amp Power: 10-75 Watts per channel (RMS)

Efficiency: 90.5 dB @ 1W/1m | 96.5 dB @ 1W/0.5m

Sensitivity: 93.0 dB @ 2.83V/1m

Nominal Impedance: 4 ohm

Frequency Response: 40 Hz – 24 kHz ± 3 dB



C1-650x:

Continuous Power Handling: 50 Watts

Recommended Amp Power: 10-75 Watts per channel (RMS)

Efficiency: 90.5 dB @ 1W/1m | 96.5 dB @ 1W/0.5m

Sensitivity: 93.0 dB @ 2.83V/1m

Nominal Impedance: 4 ohm

Frequency Response: 48 Hz – 24 kHz ± 3 dB



C1-690x:

Continuous Power Handling: 60 Watts

Recommended Amp Power: 10-100 Watts per channel (RMS)

Efficiency: 91.5 dB @ 1W/1m | 97.5 dB @ 1W/0.5m

Sensitivity: 94.0 dB @ 2.83V/1m

Nominal Impedance: 4 ohm

Frequency Response: 39 Hz – 22 kHz ± 3 dB



C1-690tx:

Continuous Power Handling: 60 Watts

Recommended Amp Power: 10-100 Watts per channel (RMS)

Efficiency: 90.5 dB @ 1W/1m | 96.5 dB @ 1W/0.5m

Sensitivity: 93.0 dB @ 2.83V/1m

Nominal Impedance: 4 ohm

Frequency Response: 36 Hz – 24 kHz ± 3 dB



Component Speaker System Models

C1-650:

Continuous Power Handling: 50 Watts

Recommended Amp Power: 10-75 Watts per channel (RMS)

Efficiency: 90.5 dB @ 1W/1m | 96.5 dB @ 1W/0.5m

Sensitivity: 93.0 dB @ 2.83V/1m

Nominal Impedance: 4 ohm

Frequency Response: 48 Hz – 24 KHz ± 3 dB



C1-690:

Continuous Power Handling: 60 Watts

Recommended Amp Power: 10-100 Watts per channel (RMS)

Efficiency: 91.5 dB @ 1W/1m | 97.5 dB @ 1W/0.5m

Sensitivity: 94.0 dB @ 2.83V/1m

Nominal Impedance: 4 ohm

Frequency Response: 39Hz – 22 KHz ± 3 dB



C1-075ct:

Continuous Power Handling: 50 Watts

Recommended Amp Power: 20-50 Watts / ch. (RMS)

Efficiency: 91 dB @ 1W/1m | 97 dB @ 1W/0.5m

Sensitivity: 92 dB @ 2.83V/1m

Nominal Impedance: 6 ohm

Frequency Response: 4 kHz – 24 KHz ± 3 dB



C1-100ct:

Continuous Power Handling: 60 Watts

Recommended Amp Power: 20-60 Watts / ch. (RMS)

Efficiency: 91.5 dB @ 1W/1m | 97.5 dB @ 1W/0.5m

Sensitivity: 94.5 dB @ 2.83V/1m

Nominal Impedance: 4 ohm

Frequency Response: 3.6 kHz – 22 KHz ± 3 dB



Woofer Features:

  • Injection-molded, mineral-filled, polypropylene cone
  • Rubber, positive roll surround
  • 1.0 in. (25 mm) diameter voice coil
  • 1.2 in. (30 mm) diameter voice coil (C1-690x, C1-690tx, C1-690)
  • Flat, linear roll spider, with integrated lead wires (C1-400x)
  • Flat, Conex® spider with integrated lead wires
  • Ferrite magnet



Tweeter Features:

  • Edge-driven, silk-suspended aluminum dome
  • 0.75 in. (19 mm) diameter diaphragm/voice coil
  • 1.00 in. (25 mm) diameter diaphragm/voice coil (C1-690x, C1-690tx, C1-690, C1-100ct)
  • Ferrofluid cooling/damping
  • Neodymium magnet



Super Tweeter (C1-690tx):

  • Edge-driven, silk-suspended aluminum dome
  • 0.75 in. (19 mm) diameter diaphragm/voice coil
  • Ferrofluid cooling / damping
  • Neodymium magnet



Crossover Features:

  • Natural roll-off, low-pass
  • 2nd order, high-pass filter with inductor and electrolytic capacitor
  • Mixed order filter network (C1-690tx)
  • Inline Outboard Crossover Filter, with Advanced Tweeter Protection Circuitry (C1-690, C1-650, C1-075ct, C1-100ct)
