Metra Launches New Pioneer Integration Package

share on:

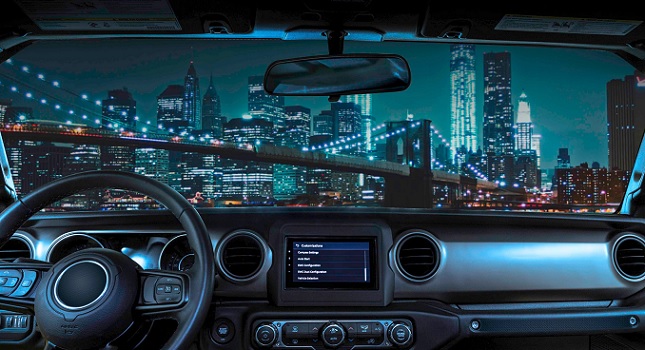

Metra introduces Pioneer radio kits

Press Release (UNEDITED)–Holly Hill, FL – Metra Electronics ® is now shipping a fully integrated dash kit package that interfaces with a variety of Pioneer’s in-dash receivers. The first product of this new series, the AXPIO-JL1, is designed specifically for 2018-up* Jeep Wrangler JL models and works in both single and dual-zone vehicles.

This solution features an Axxess AXPIO Series interface, vehicle specific harnessing, a direct OE replacement camera, built-in STOP/START engine override interface, USB/AUX/HDMI replacement panel, radio antenna adaptor, and a dash kit in one complete package.

The AXPIO-JL1 is designed specifically for Pioneer’s Double-DIN 6.8-inch in-dash multimedia receivers, the DMH-W4660NEX, DMH-W4600NEX, and the new DMH-WC5700NEX**. This kit will also work with Pioneer 9-inch receivers, the modular solutions DMH-WC6600NEX and the floating type DMH-WT7600NEX, as well as the floating type 10-inch receiver, the DMH-WT8600NEX, with the additional purchase of the Metra 109-UN02 floating mount kit**.

The AXPIO-JL1 will allow Pioneer’s in-dash receivers to fit in the shallow space within the Jeep dashboard while still retaining important vehicle functions. The included Axxess interface with plug-n-play harnessing allows vehicle information and settings that were controlled on the factory screen to be retained, displayed and controlled on the Pioneer touchscreen. This solution will
retain and control most of the settings that would otherwise be lost after replacing the head unit, including HVAC controls and gauges, heated/cooled seats, and other driver personalization options.

Since the factory LVDS backup camera will no longer work, Metra has included an IP68 rated iBEAM backup camera as a high-quality, direct OE replacement. A replacement panel for the USB, AUX, and HDMI ® ports is also included with 3-feet of wiring, along with a radio antenna adaptor for GPS. For even more value, Axxess’s patented STOP/START engine override interface is built-into
the interface, which is designed to disengage the STOP/START feature of the vehicle and keep that feature disengaged even after the key has been cycled.

The built-in integration technology from Axxess also retains safety chimes through an offboard speaker, retains audio controls on the steering wheel, retains R.A.P. (Retained Accessory Power),and provides accessory power (12-volt 10-amp) and NAV outputs for parking brake, reverse, and speed sense. As new vehicle technology has evolved, the factory head unit now goes beyond displaying just the car audio settings, presenting a challenge for installers who are replacing the factory radio with an aftermarket receiver. Losing the ability to display vehicle settings on the screen is not only an inconvenience for many drivers but may prevent them from upgrading their
audio system altogether. With Metra’s new solution, installers can now offer a fully integrated package that will fit and function like the factory head unit.

“This new integration with Pioneer’s products is a first for Metra Electronics and our Axxess integration line,” says Jason Anderson, VP of Product Research and Development for Metra’s 12volt brands. “As vehicle technology changes each year to make car audio upgrades more challenging, our solutions will evolve to help installers continue to offer OEM-quality upgrades for their customers,” he added.

A video showcasing this new product is available at https://youtu.be/_q6HOzewoR4 from Metra’s YouTube channel. The AXPIO-JL1 is in stock now and Metra will release additional integration packages from the Axxess AXPIO Series in the near future that will cover even more vehicle applications.

AXPIO-JL1 Product Specifications:
● Designed for Pioneer’s DMH-W4600NEX, DMH-W4600NEX, and DMH-WC5700NEX
receivers** (also compatible with Pioneer’s modular and floating type 9-inch and 10-inch in-
dash receivers with the additional purchase of the Metra 109-UN02 floating mount kit)
● Allows retention and adjustment of the factory personalization menu through the Pioneer
receiver:
o Provides a visual view of HVAC and gauges on the Pioneer touchscreen
o Allows adjustment of HVAC functions through the Pioneer touchscreen
● Complete plug-n-play installation:
○ Includes dash kit with Axxess interface and vehicle-specific t-harness
○ Includes iBEAM weather-resistant direct OE camera replacement rated IP68
○ Includes USB/AUX/HDMI ® replacement panel (3ft.)
○ Includes radio antenna adaptor for GPS
● Provides a built-in STOP/START engine override (if equipped)

● Provides accessory power (12-volt 10-amp)
● Retains R.A.P. (Retained Accessory Power)
● Provides NAV outputs (parking brake, reverse, speed sense)
● Retains audio controls on the steering wheel
● Works in both single and dual-zone vehicles
● Retains safety chimes through offboard speaker
● Designed for amplified or non-amplified vehicles
● Micro “B” USB updatable
● Dash kit is painted scratch-resistant matte black to match the factory finish

*Visit AxxessInterfaces.com for up-to-date, vehicle specific information.
