New Advanced Mirror, Dashcam From Metra

share on:
iBeam-360-mirror

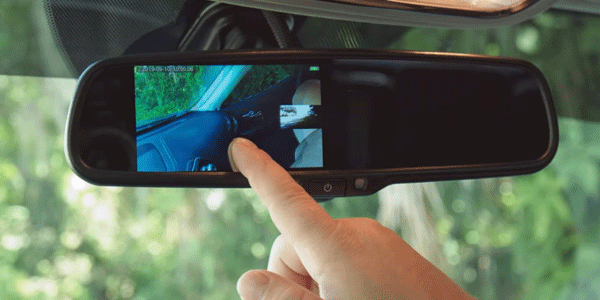

Metra Electronics will introduce at the SEMA Show next month a 360-degree automotive replacement mirror that simultaneous  records the inside and outside of the vehicle.  You also get touchscreen finger-tip control of the image.

Drivers may add a rear camera to the system with a 130-degree diagonal field of view.

Users can pan left or right on the touchscreen for a wider field of view and get a split or quad-screen view as shown below.

The iBeam mirror model TE-360M45 also provides interior audio recording and snapshot capability, especially helpful for ride share or commercial drivers.

It records in 1080p video and has a built-in 4.5-inch monitor with touch control and 480×845 resolution.

A dashcam version of the system will also be announced.  Called the TE-360M45, it has the same features as the mirror except it includes a 4-inch touch screen with 480×800 resolution.  It also works with the same 130-degree rear camera.

Both systems can record an incident while the vehicle is parked through a built-in G sensor.  The device begins to record if there is a shock to the vehicle even when it is turned off.

Video footage is stored on a microSD card that can support up to 32GB.

            TE-360M45 Product Specifications

  • 360-degree front camera view: 1440×1440/H360 @ 24fps (includes driver’s view of the front of the vehicle and interior of vehicle)
  • Users can touch the video screen to pan from one side to the other to see a wider field of view from the front camera
  • Rear camera view: 1280×720 @ 15fps
  • Rear camera field of view: diagonal 130 degrees, horizontal 90 degrees (+ or – 5 degrees), vertical 52 degrees
  • Interior audio recording
  • LCD 4.5″ touchscreen built into replacement rearview mirror
  • Maximum 32GB microSD card (class U1 or U3) (sold separately)
  • Resolution: 480×845
  • 1080p
  • Luminance: 400 nits
  • Parking mode and monitor
  • Collision lock support
  • Universal mount, if vehicle does not have a universal footprint for mirror windshield mount than it requires a TE-M06 mount (sold separately)
  • 3 year warranty

TE-DVR360 Product Specifications

  • 360-degree front camera view (includes driver’s view and interior of vehicle)
  • 130-degree rear camera included for rear of vehicle recording
  • Rear camera field of view: diagonal 130 degrees, horizontal 90 degrees (+ or – 5 degrees), vertical 52 degrees
  • Interior audio recording
  • 480×800 resolution on LCD 4″ touchscreen monitor for viewing
  • 1080P
  • Luminance: 400 nits
  • Loop recording in minute segments
  • Built-in DVR with collision lock support
  • Maximum 32GB microSD card (class U1 or U3) (sold separately)
  • Parking mode feature to record while the vehicle is off
  • Voltage protection
  • Mounts to the windshield using double-sided tape (included in the kit)
  • 3 year warranty

iBeam will also introduce at the SEMA Show a new solution to replace the factory third brake light with a rear-facing camera designed for the 2015-2019 Ford F-150, the 2019 Ranger and the 2017-2019 F-Series Super Duty models.

Metra will display at booth 11639 in the North Hall at the SEMA Show in Las Vegas from November 5 to 8.
